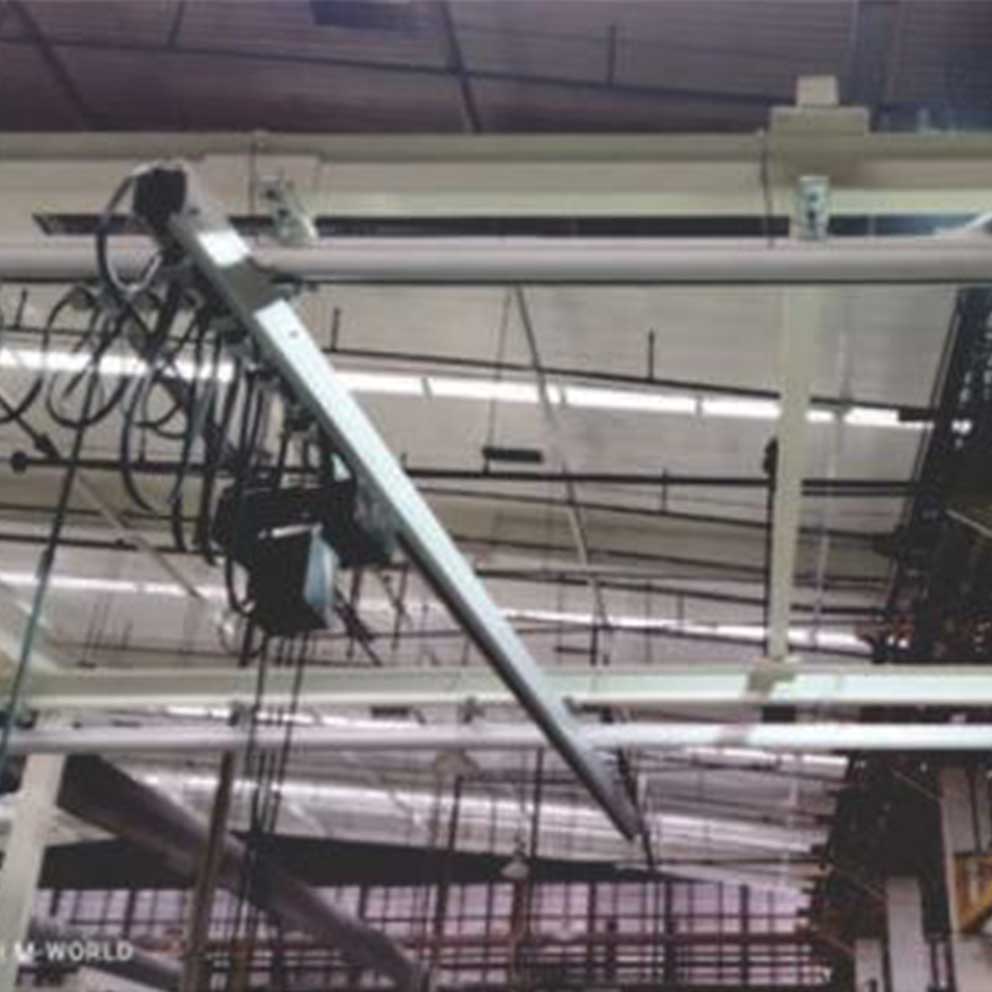

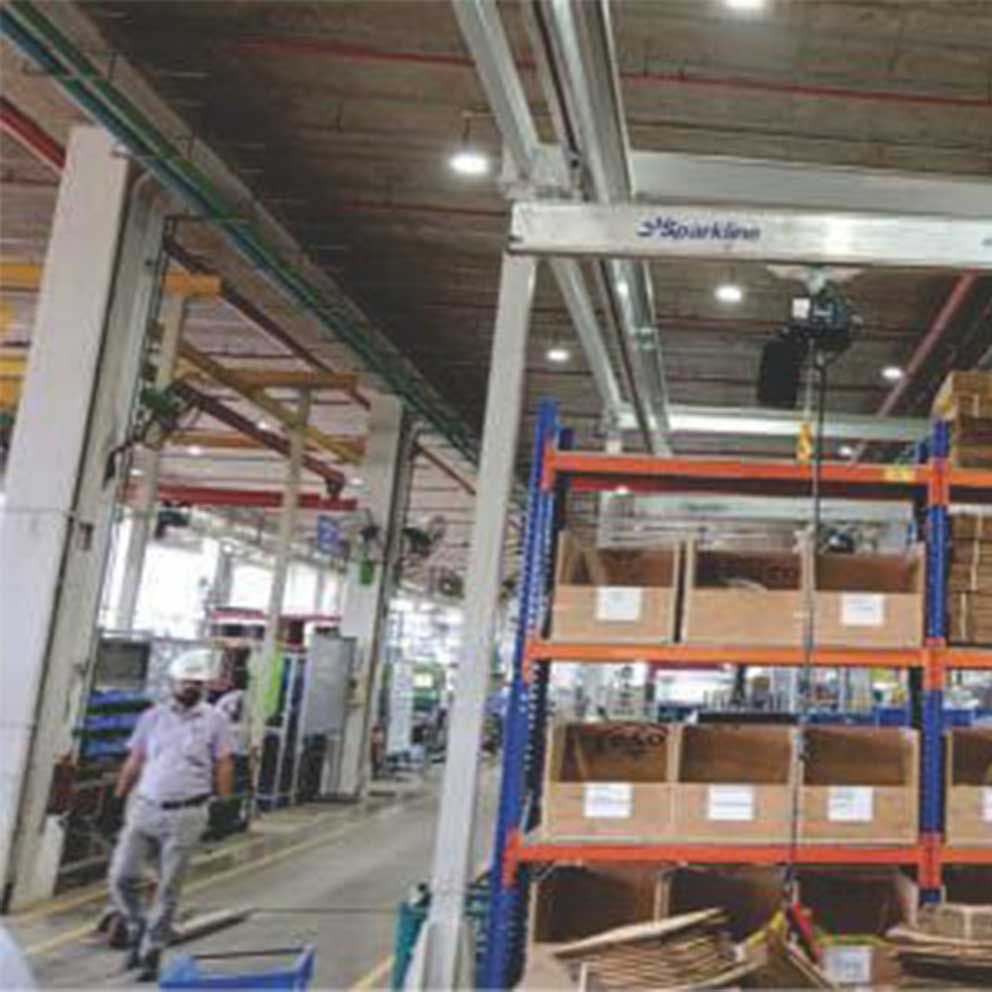

Aluminium Rail System

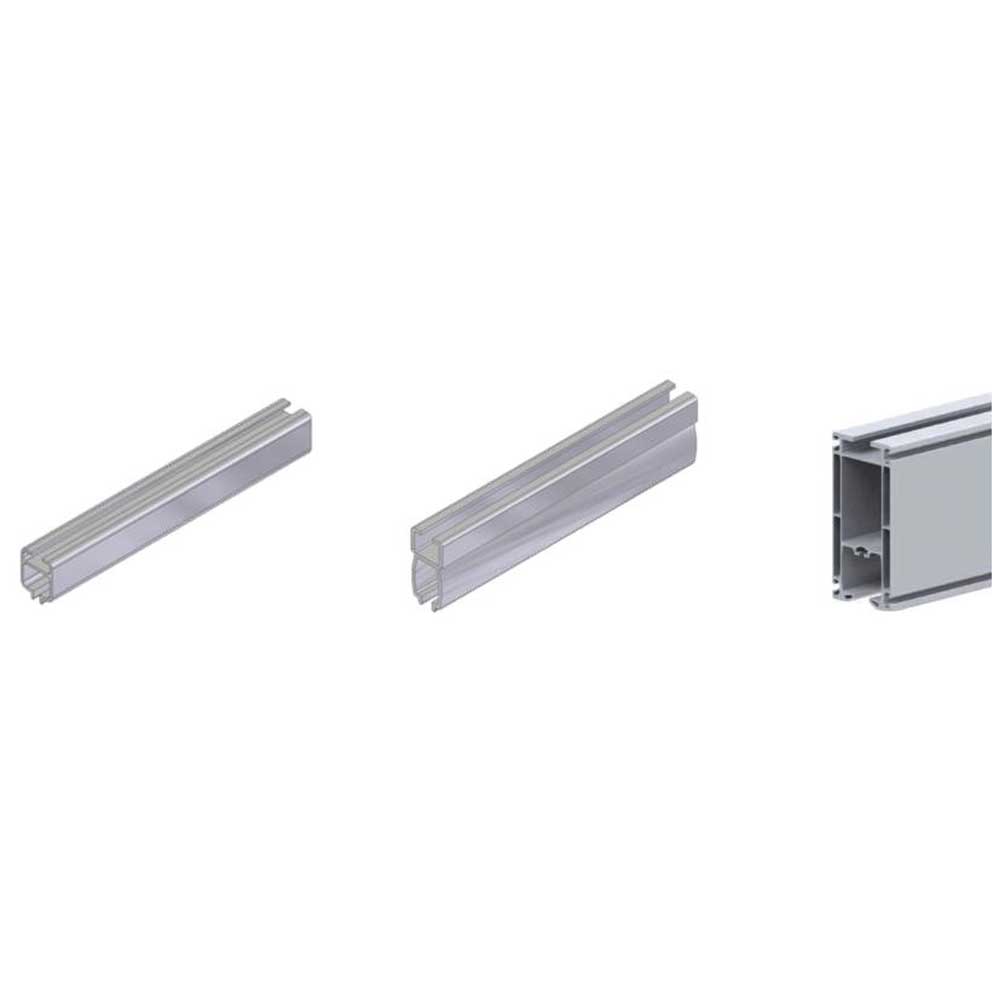

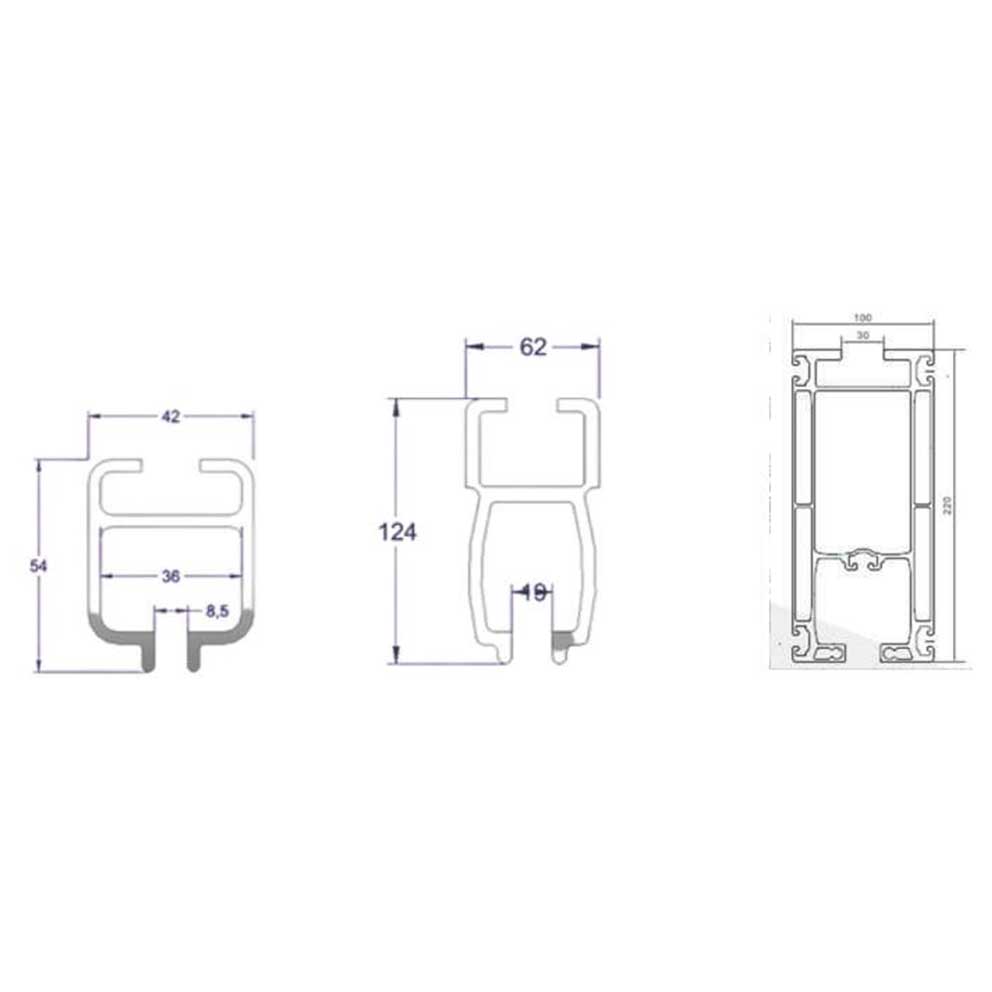

- Our aluminium profiles SRA100, SRA120 & SRA180 are useful for quick and smooth manual operation for lifting weights upto 1600 kg.
- By selecting these profiles you achieve flexibility and reduce applied forces to the ceiling structure.
- Moreover due to the lower push pull force operator fatigue is reduced.
Load Graph for MS Rail System
| SWL in Kg | Upto 50 | 125 | 250 | 500 | 1000 | 1600 |
|---|---|---|---|---|---|---|
| Rail Type | Span in mtr | |||||
| SRA 100 | 1.5 | – | – | – | – | |
| SRA 120 | – | 4.5 | 2 | 1.5 | – | – |
| SRA 180 | – | – | – | 6 | 4.5 | 2 |
