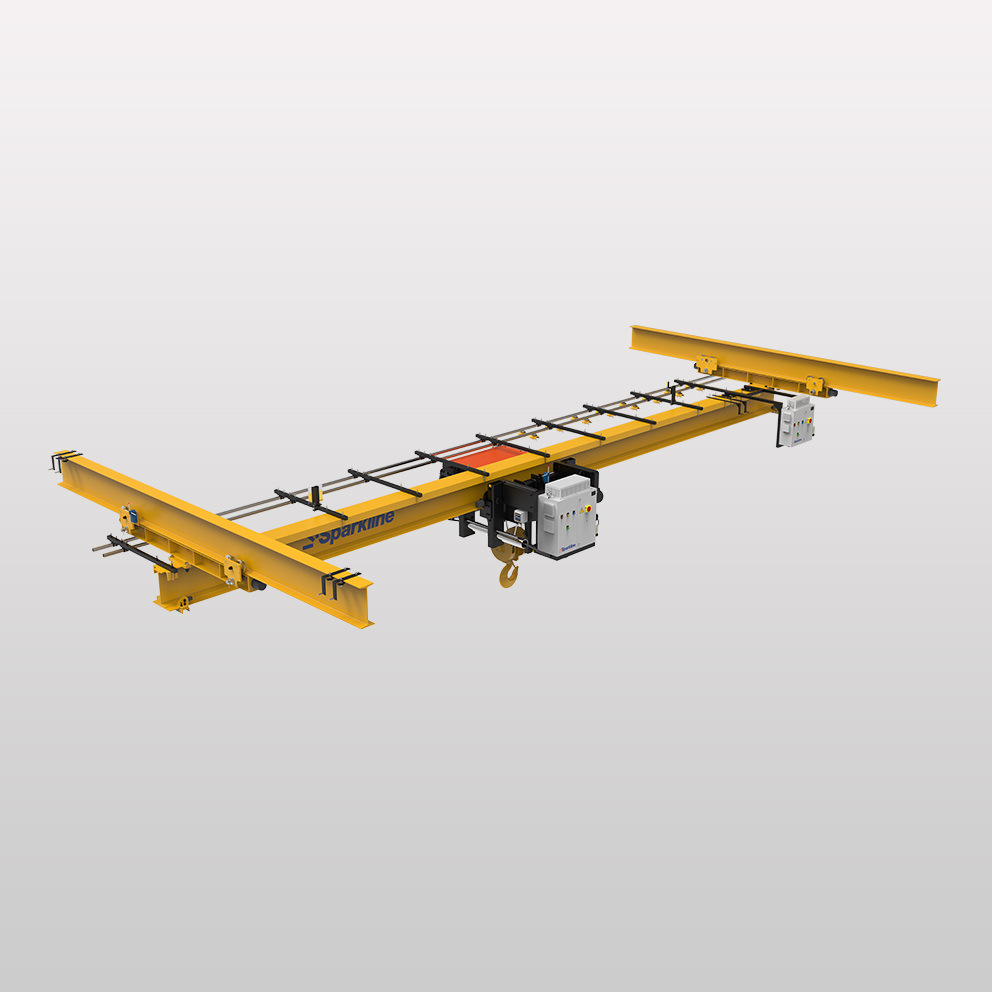

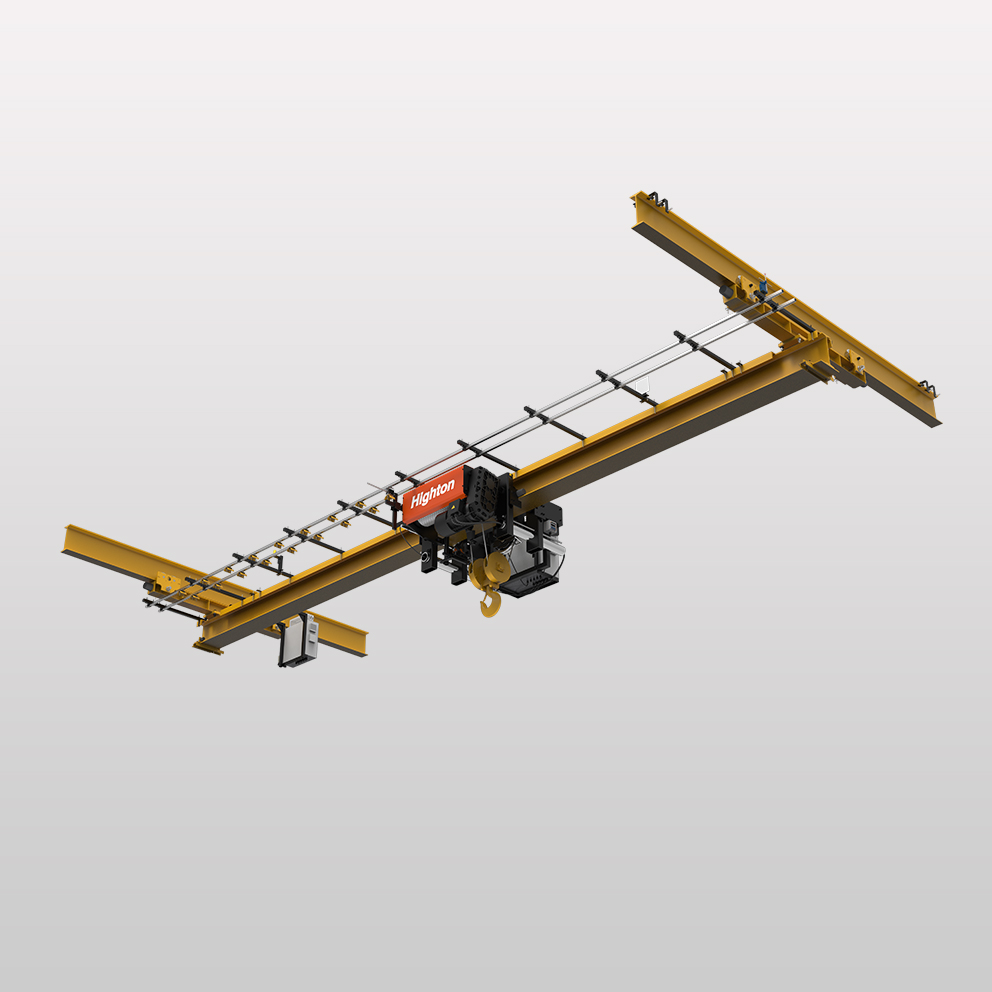

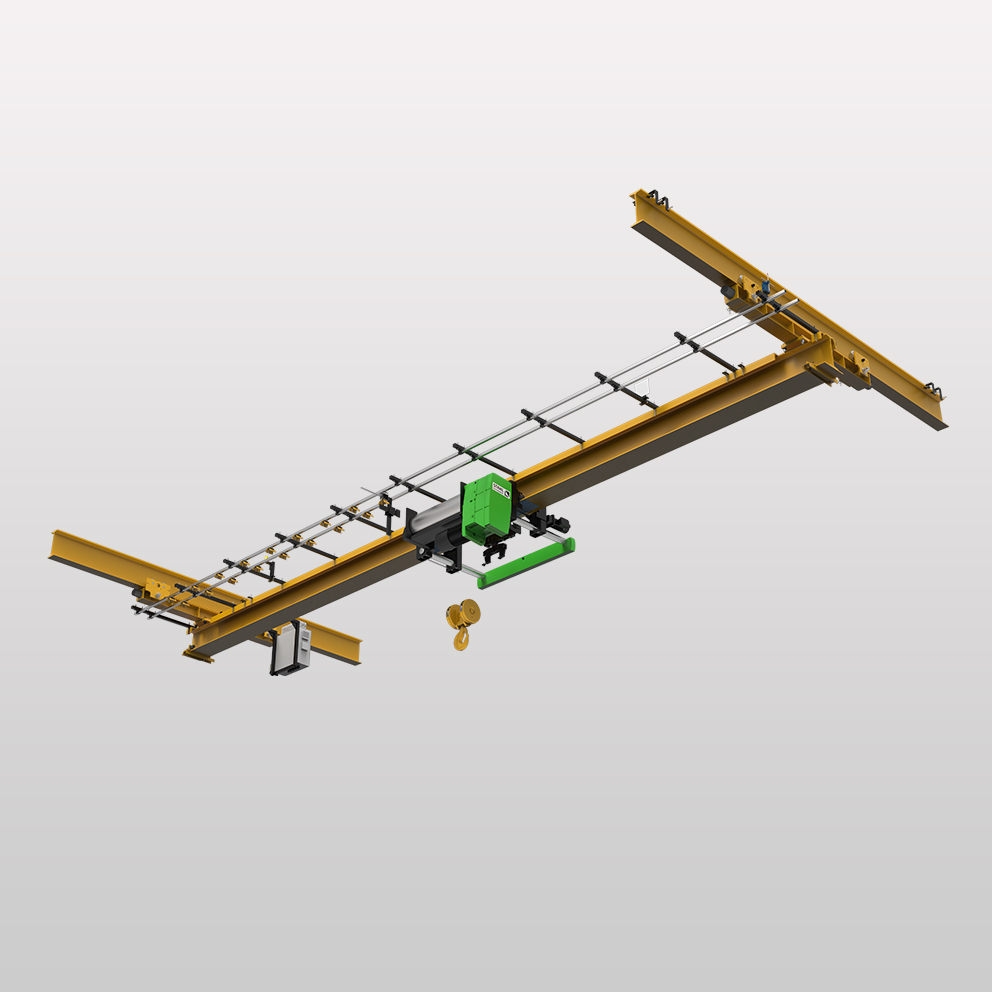

Single Girder Electric Underslung Crane

Short Description
Very similar to SGEOT but the gantry tracks are suspended on the ceilings instead of free standing or the building corbels.

Reduced lifting capacity than SGEOT.

Made up of a single bridge girder, two end-carriages and hoist which run along the bottom flange of the bridge girder between two end carriages

Typically used in areas where the available headroom is very short and the conditions are complex. Best possible results achieved by Underslung crane in tight spaces with full space utilization. Possible to optimize highest hook position by stooling up the bridge between two en carriages.

Technical Specifications

• Capacity Range: Up to 10t
• Span: Up to 16m
• Variable speeds available
• Ex Protection available on request
