Steel Rail System
Our steel profiles SLR 120, SLR 170 & SR 180 are a strong and ergonomic choice, ideal for any heavier weight applications in any working environment. Suitable when increased suspension distance is required.
Load Graph for MS Rail System
| SWL in Kg | 125 | 250 | 500 | 1000 | 1600 | |
|---|---|---|---|---|---|---|
| Rail Type | Span in mtr | |||||
| SR 180 | 7.5 | 7.5 | 7.5 | 7 | 4 | |
| SLR 120 | – | 7 | 5.5 | – | – | |
| SLR 170 | – | 7.5 | 7.5 | 6.5 | 5.5 | |

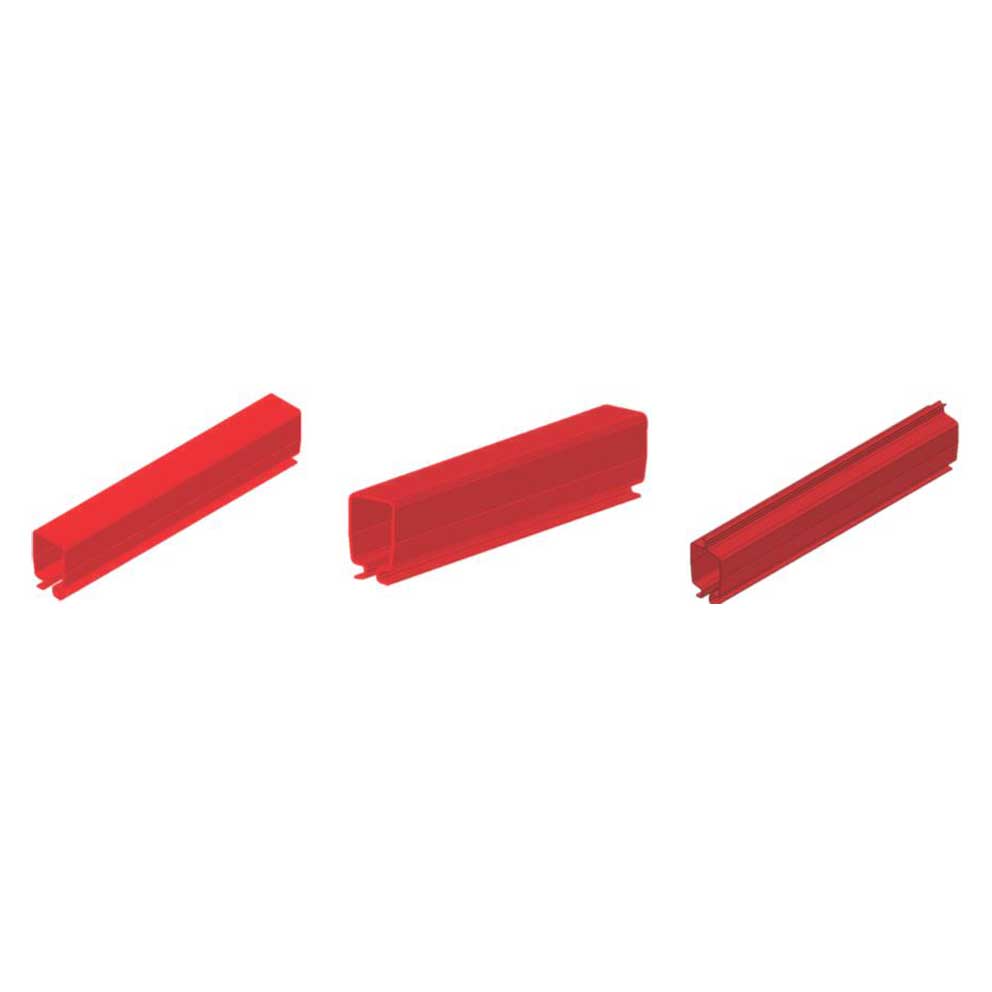

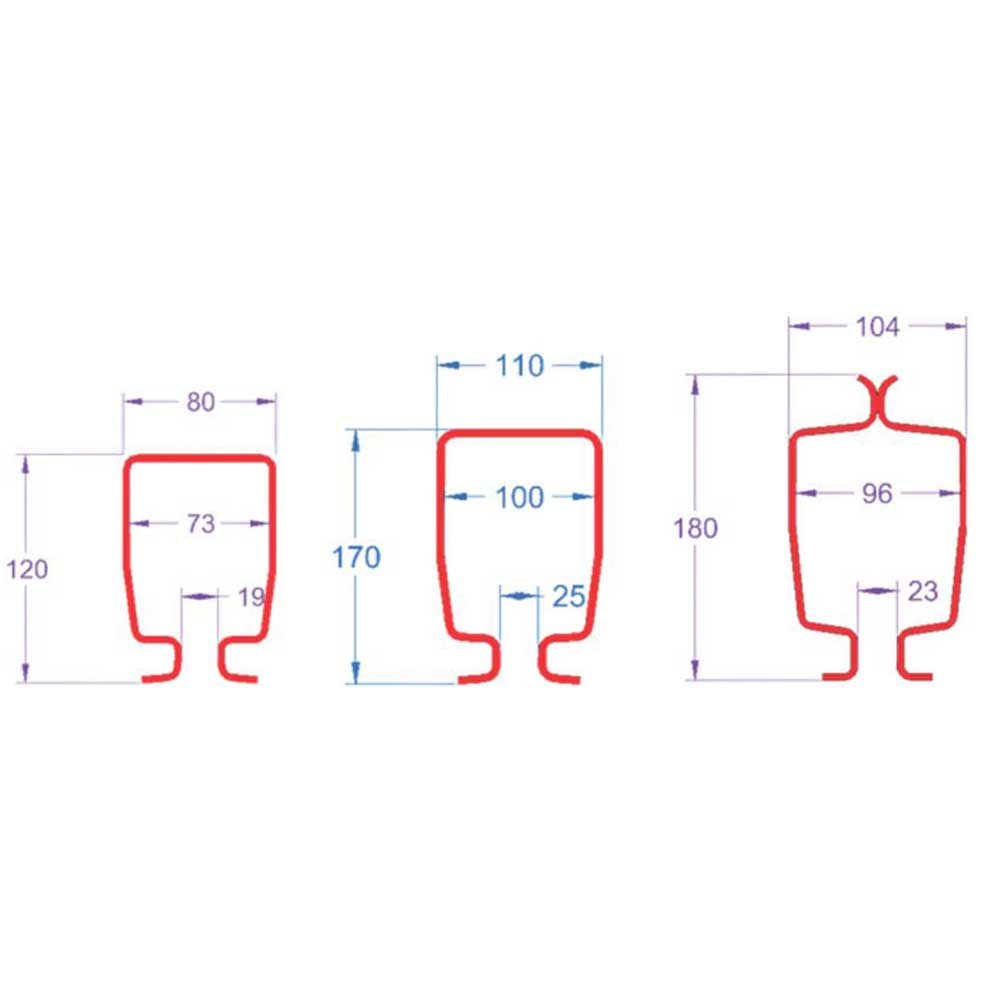

Sparkline rail sections
Sparkline offers four basic rail profiles with four additional capacities using a support structure on top of our steel tracks. From simple lighter aluminum systems to complex heavy duty steel installations.
- Our track is formed from a single piece of cold rolled high strength steel. NO weldments means less wear! The result is little manual strain and good ergonomics.

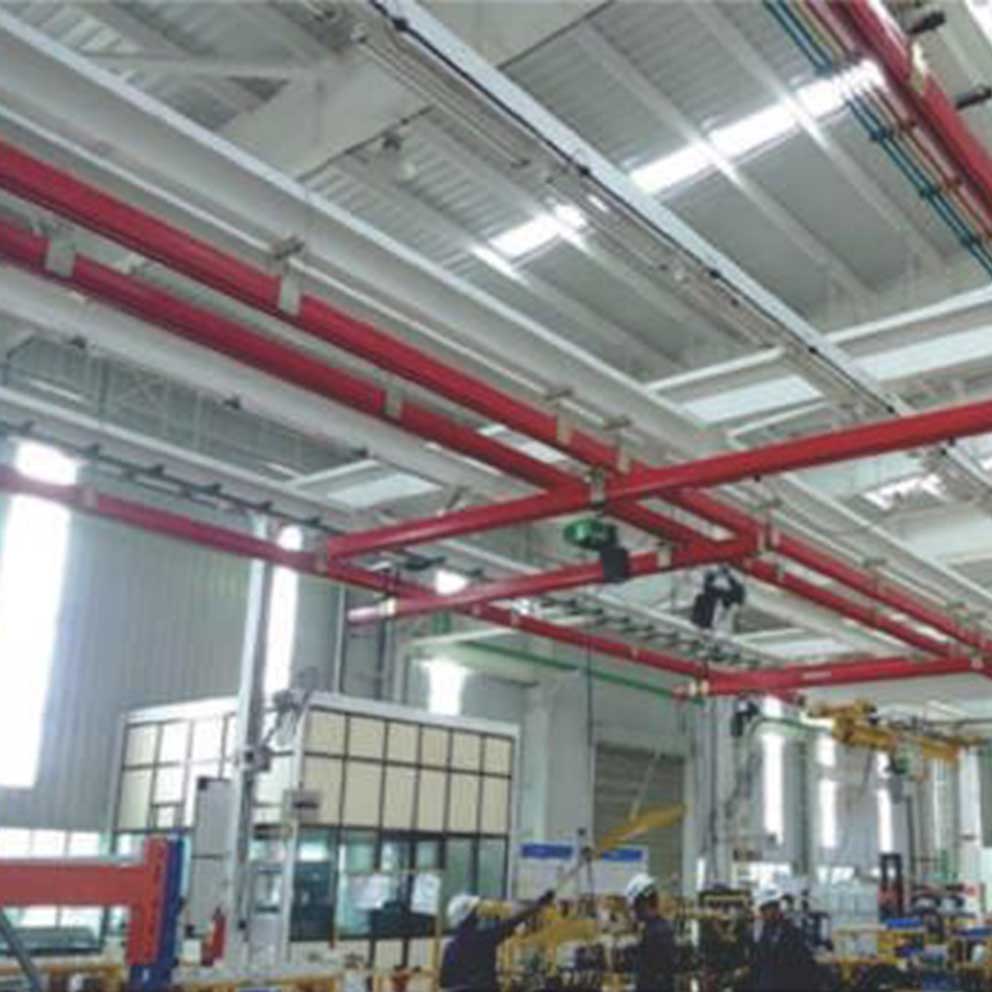

Monorail System
It is possible to construct a system suitable for specific application by assembling rated parts such as side track, curve tracks and track switches etc.

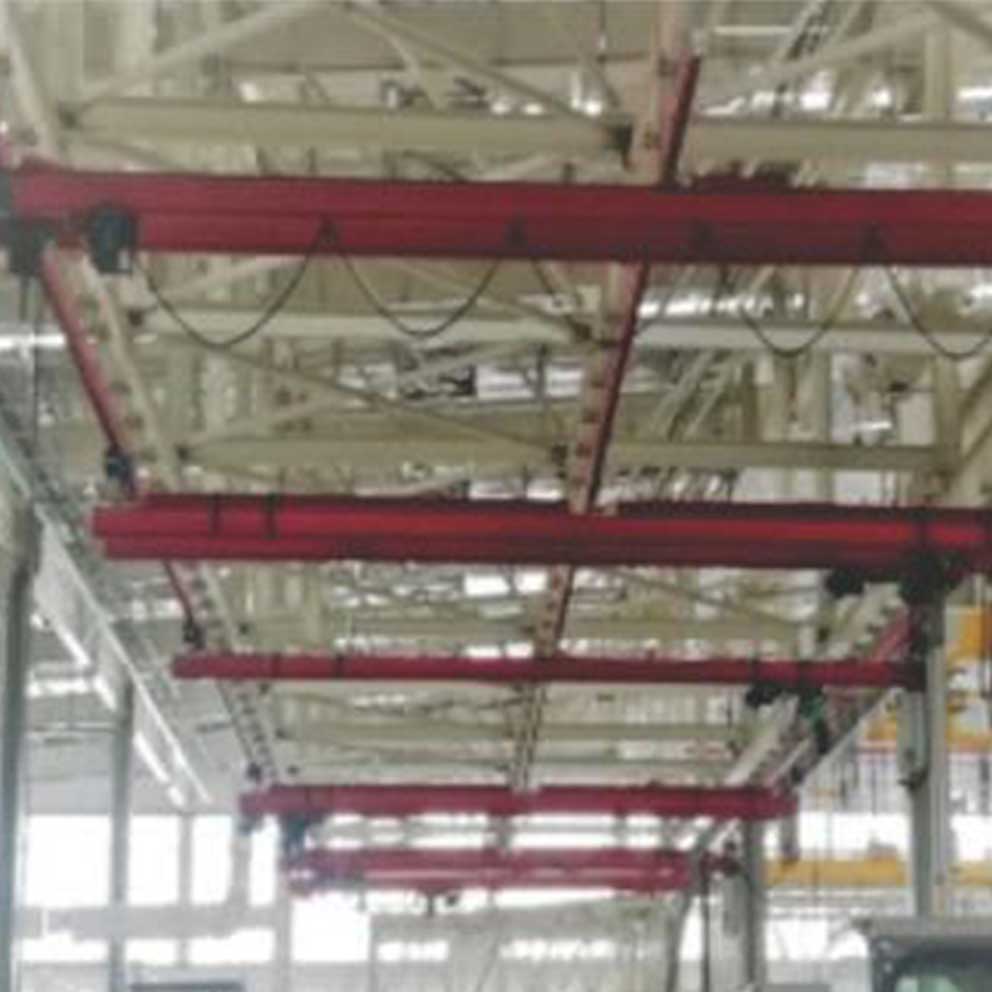

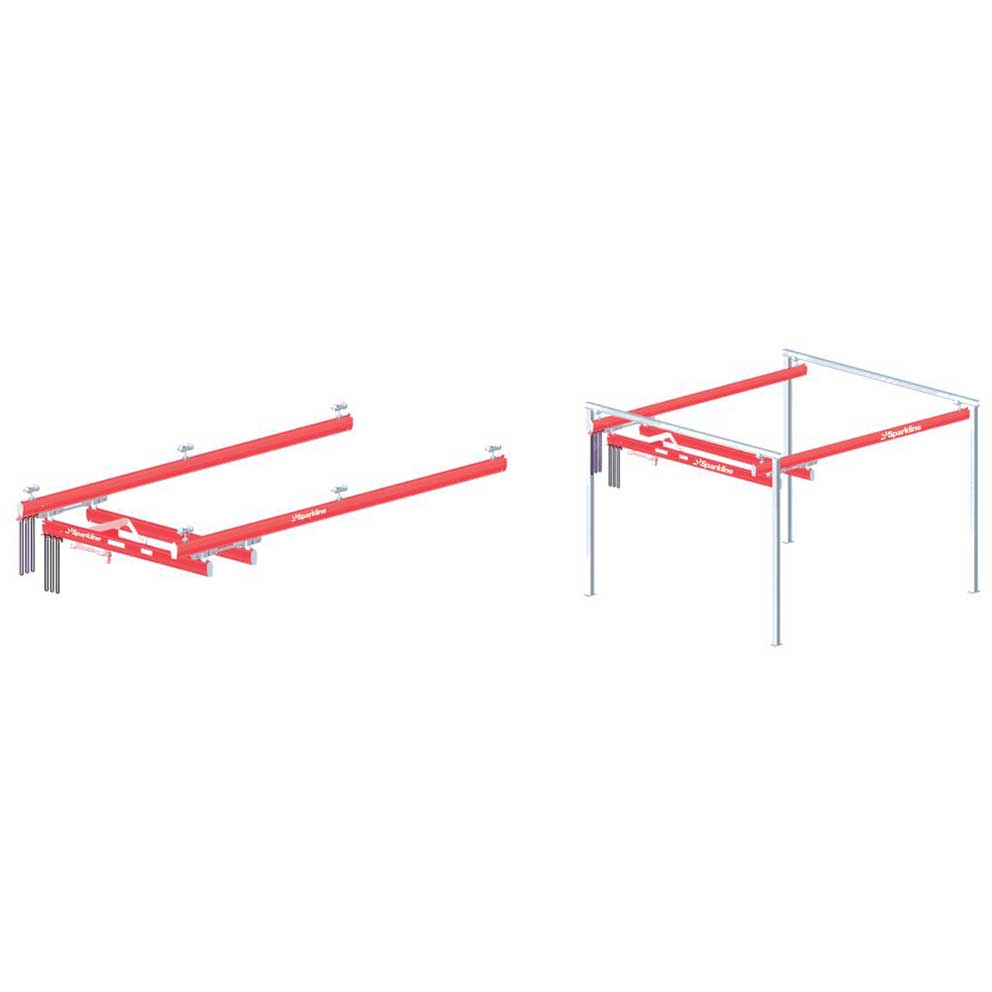

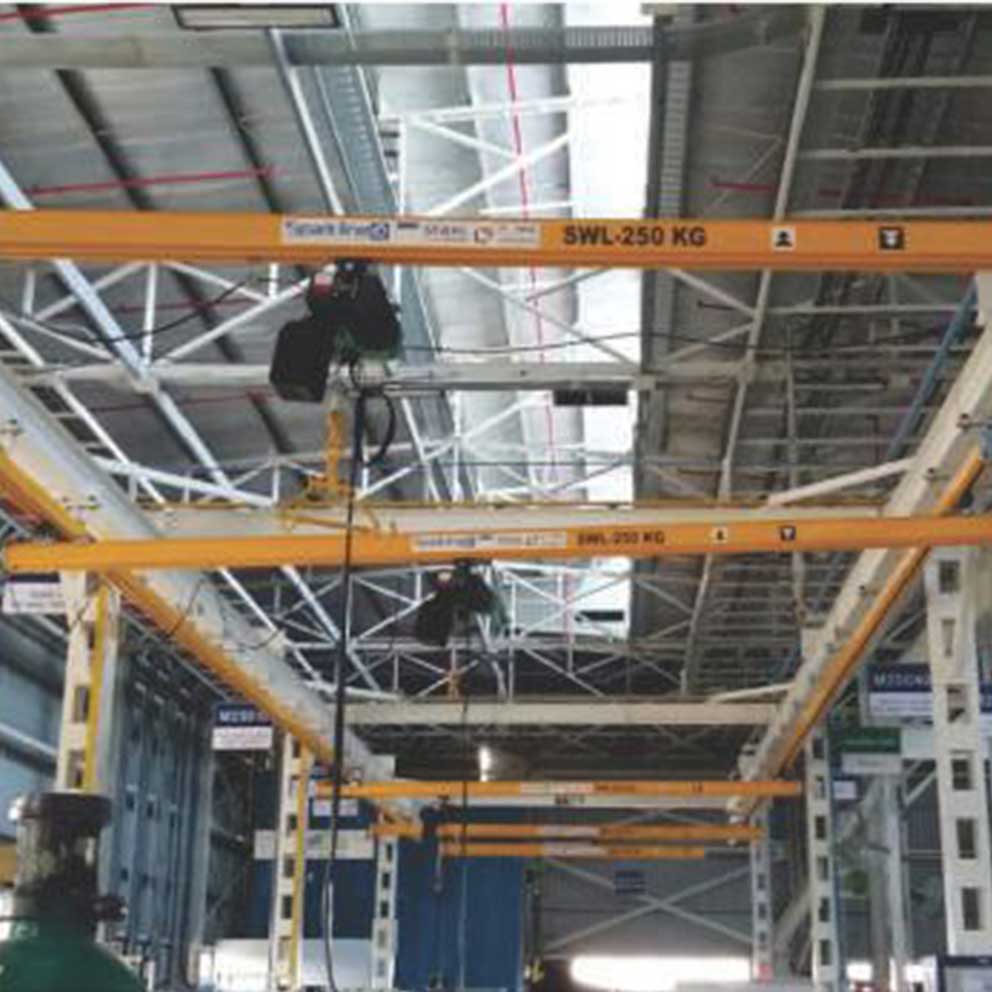

Single Girder Rail System
The single girder bridges are lighter than the double girder units and therefore easier to move. Additional supports for the crane runway are not necessary. Even partial areas of a workshop may be easily fitted with suspension cranes at low investment, as required.

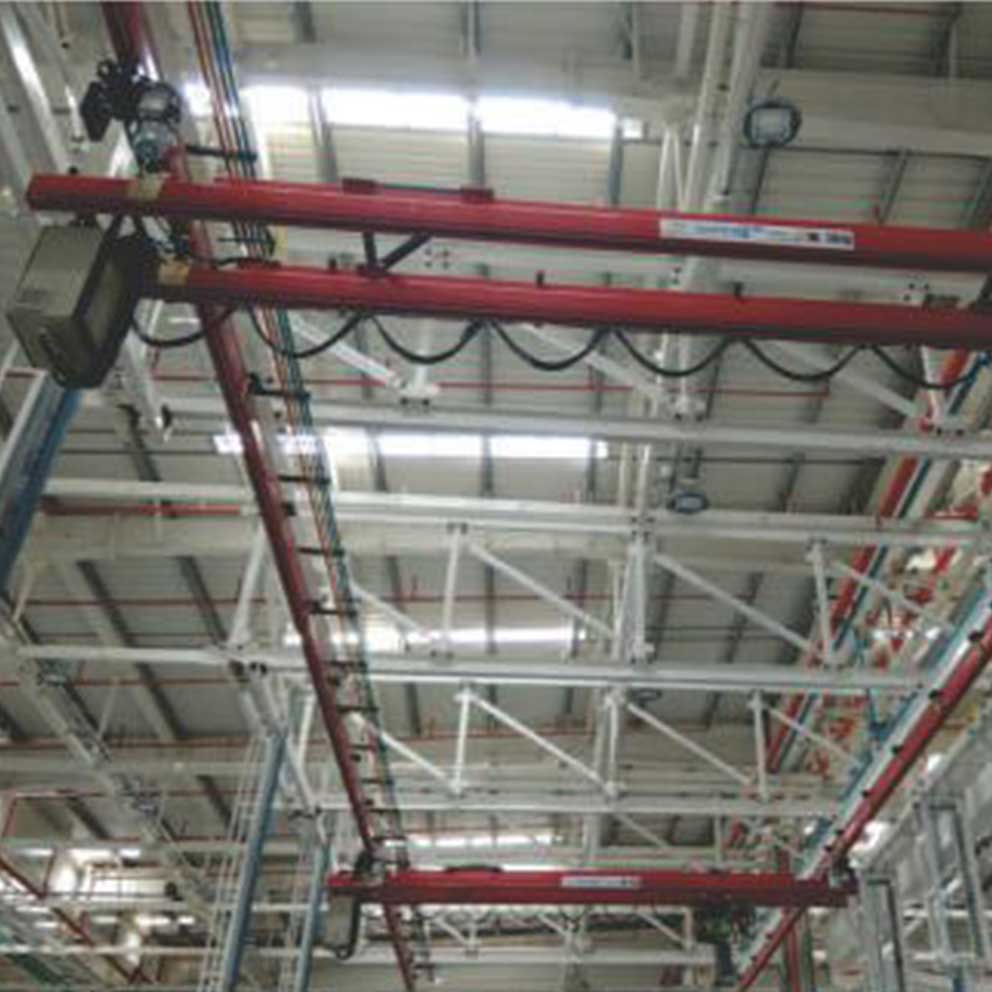

Double Girder Rail System
- The double girder bridges allow for longer span than the single girder ones and also offer a shorter headroom.
- Double-girder suspension cranes also feature a low deadweight and favourable structural dimensions.
- It can be moved on manual but in case span is more than 6m and load is more than 1000kg, it can be moved by using drive motor.
