Utilities

Short Description

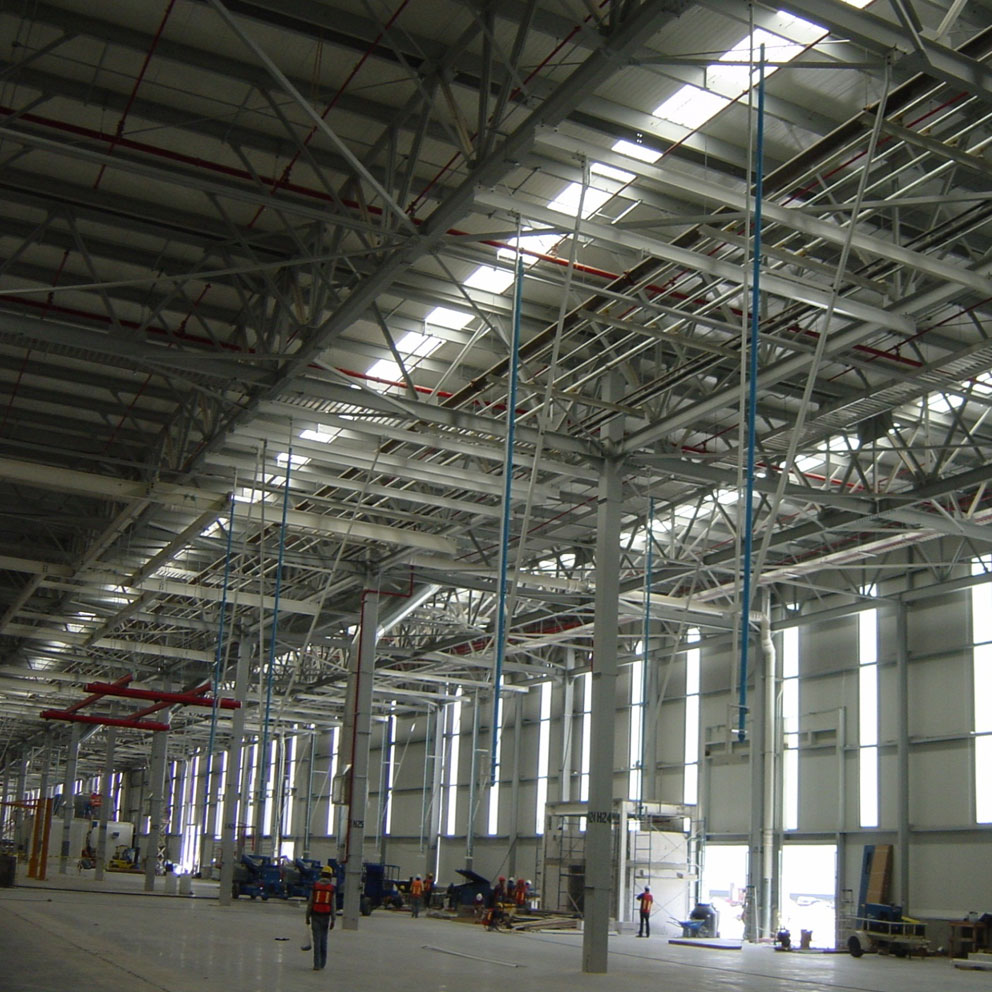

Sparkline specializes in the comprehensive design, manufacturing, supply, and installation of Line Side Utilities for plants. As the only company in India offering complete line side utility solutions on a turnkey basis, we provide a wide range of services, including structural works, secondary structure extensions, pneumatic lines, tool rails, illumination, electrical utilities, storage fencing, and material handling systems.

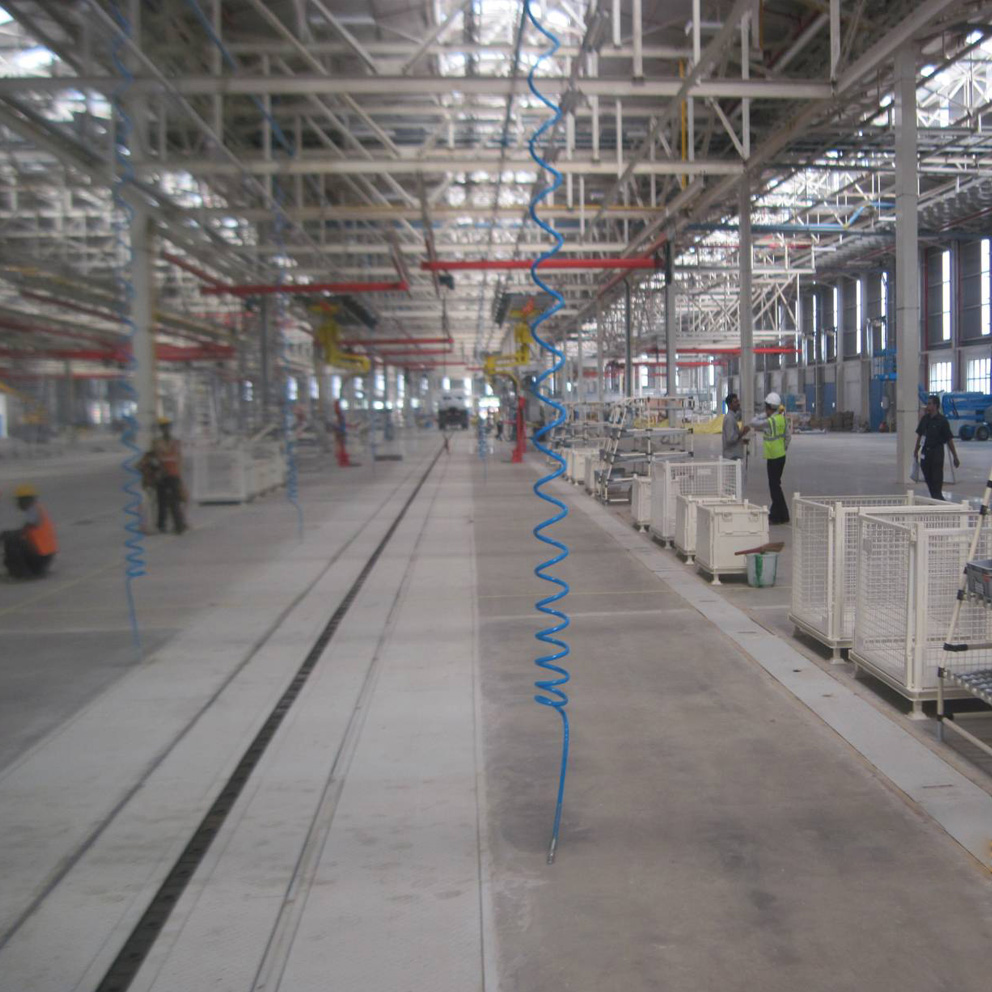

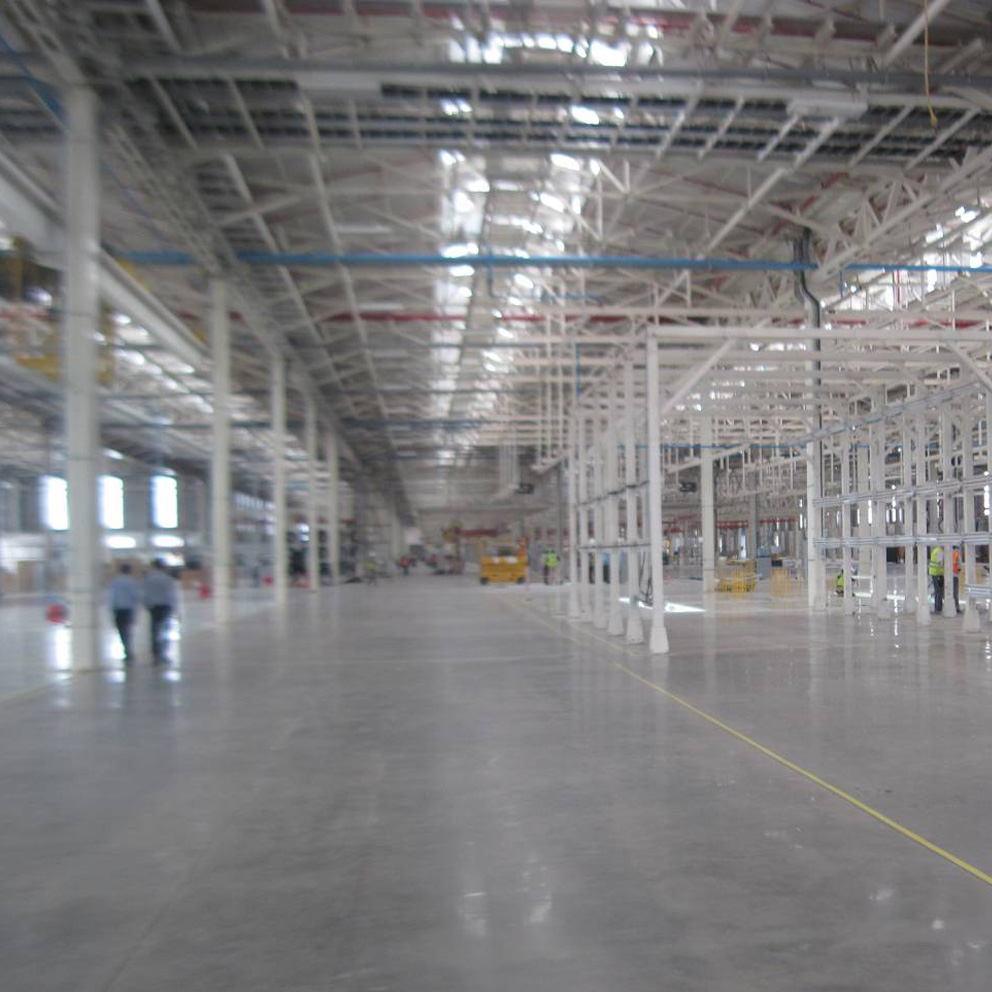

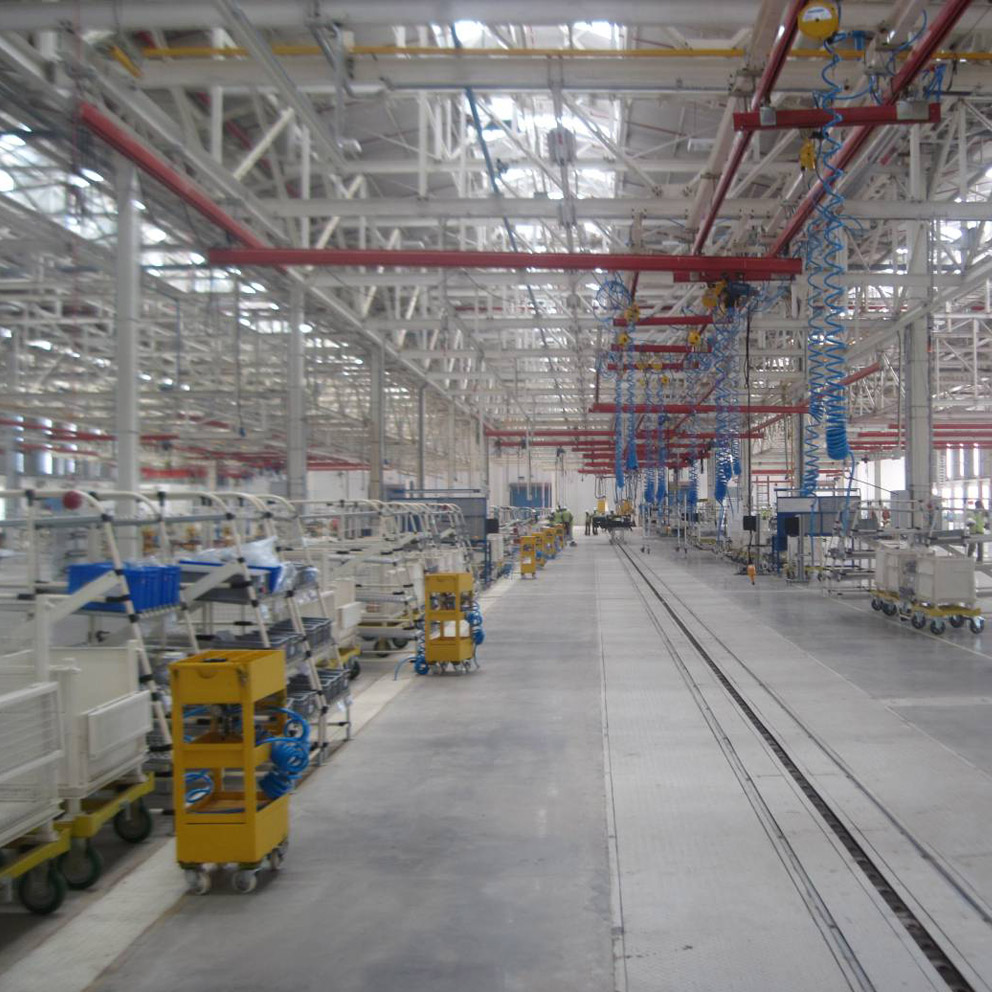

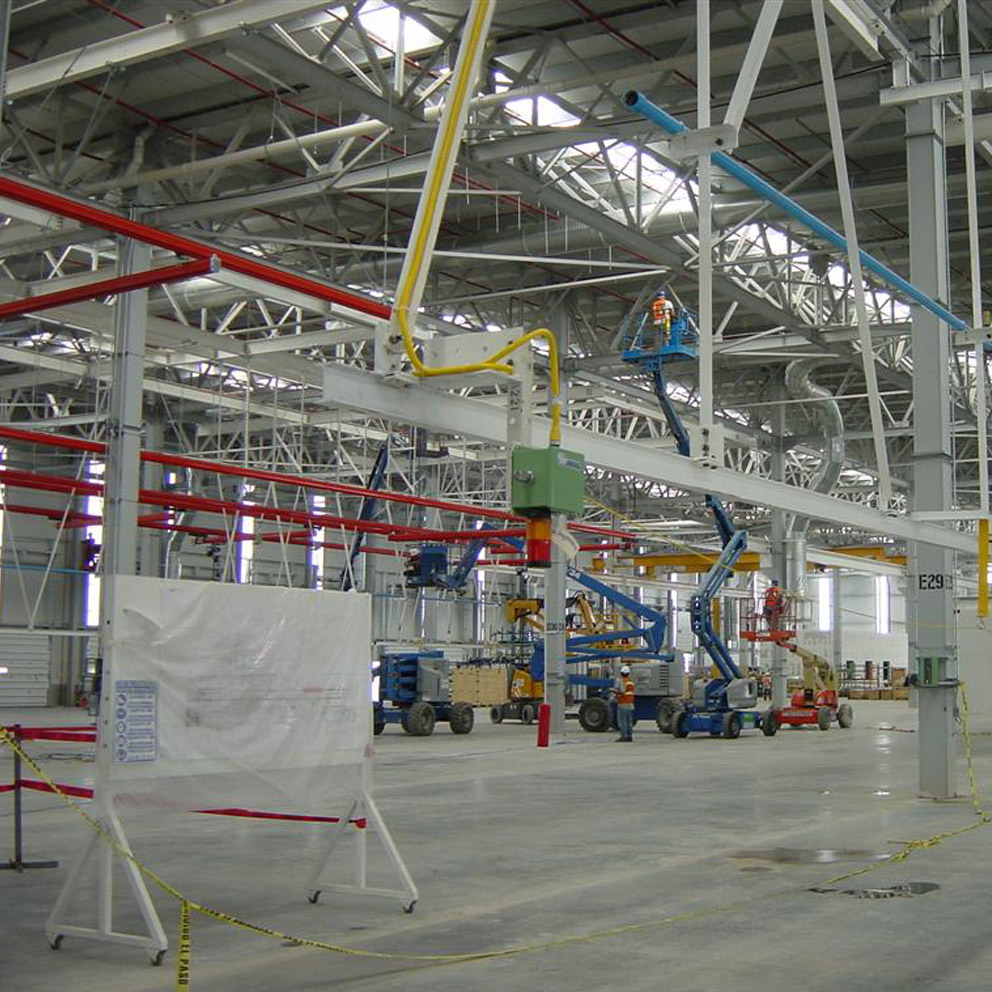

Our offerings include complete pneumatic line tool trolleys and hose reels tailored for pneumatic guns, enhancing efficiency and ease of use. We also deliver customized structures that integrate secondary utilities, such as air and power supply, at critical points throughout your facility.

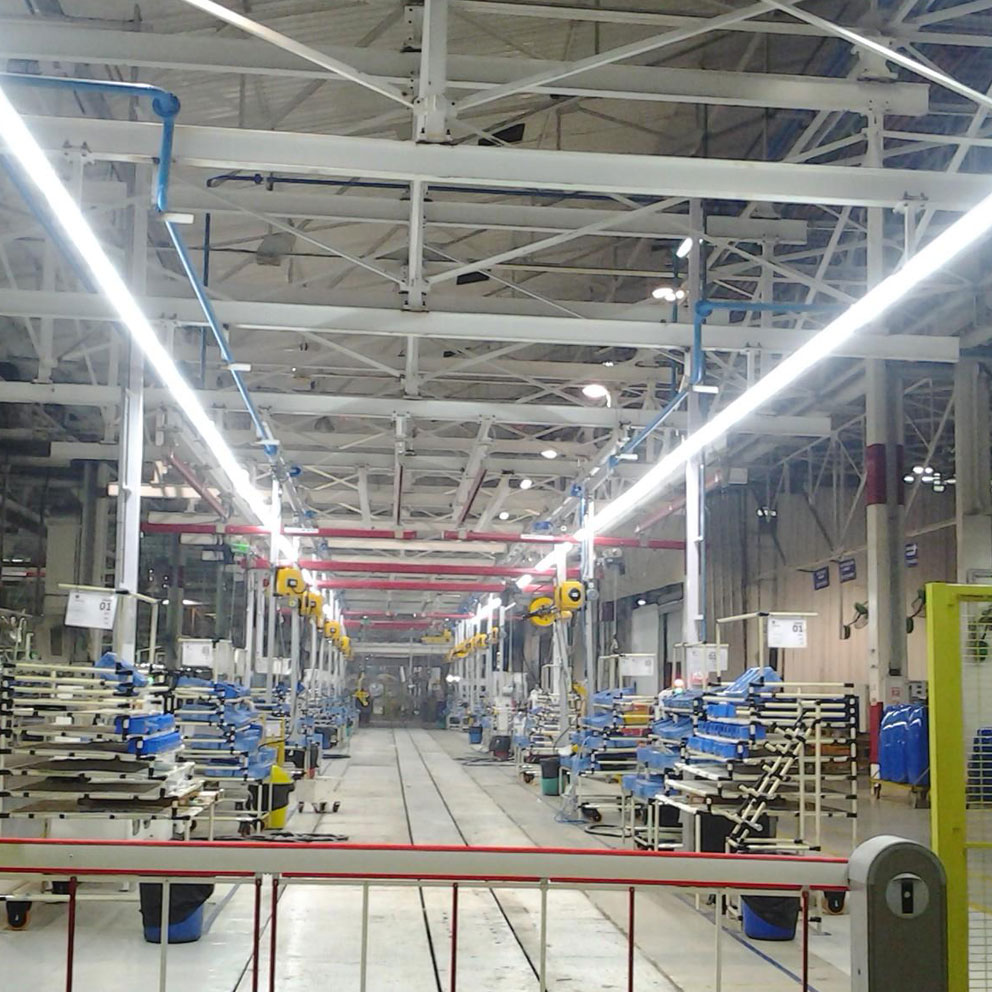

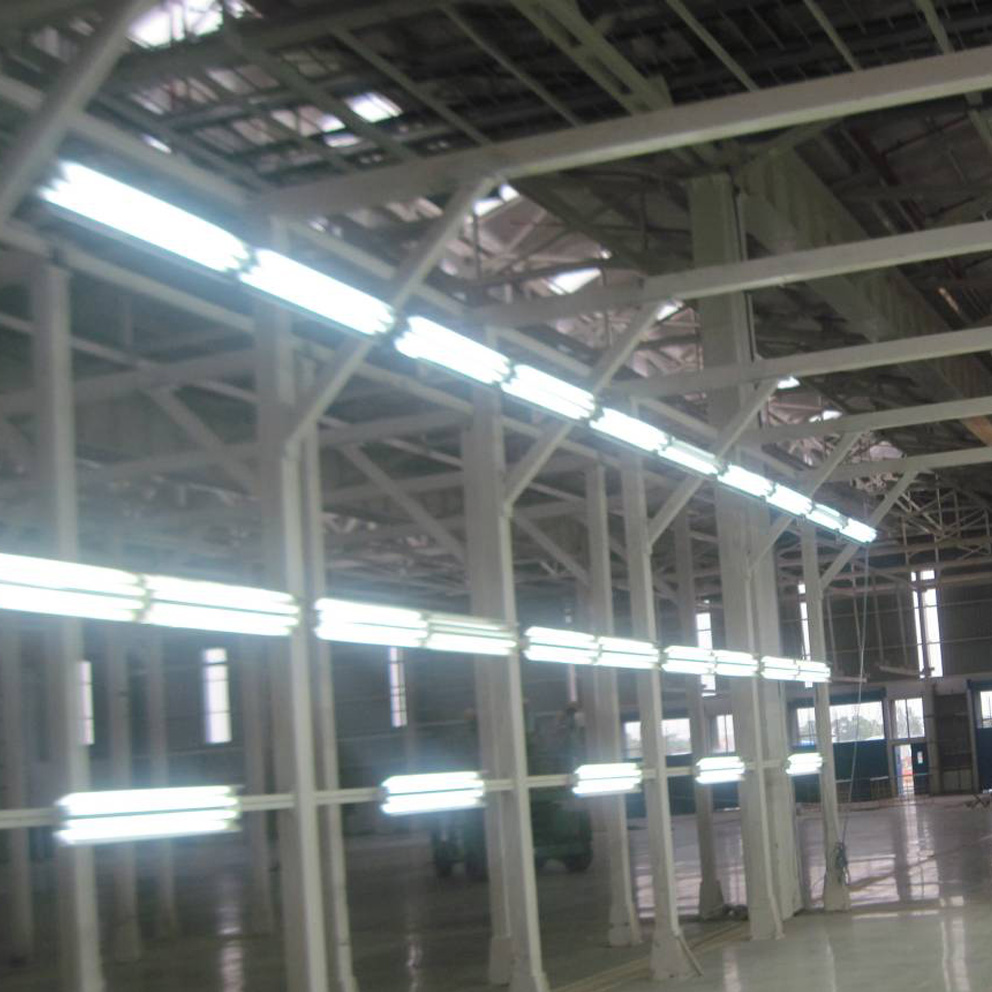

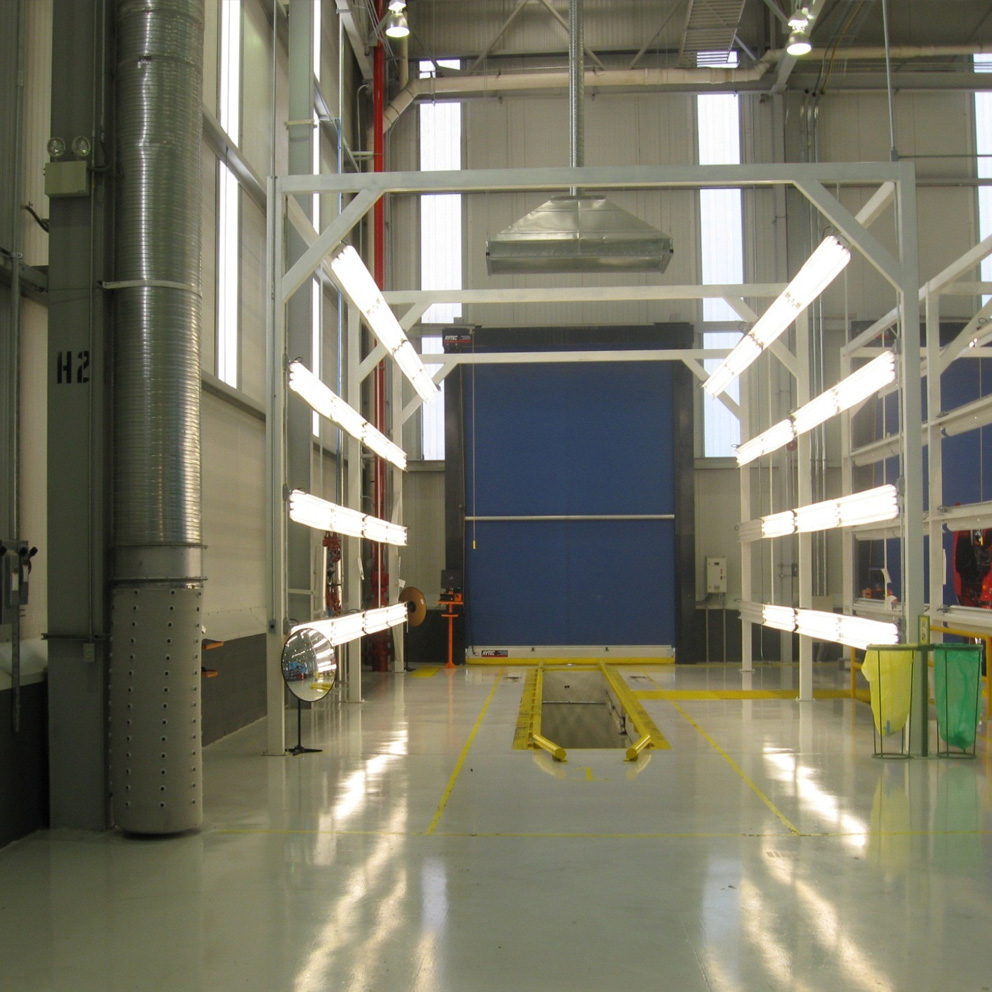

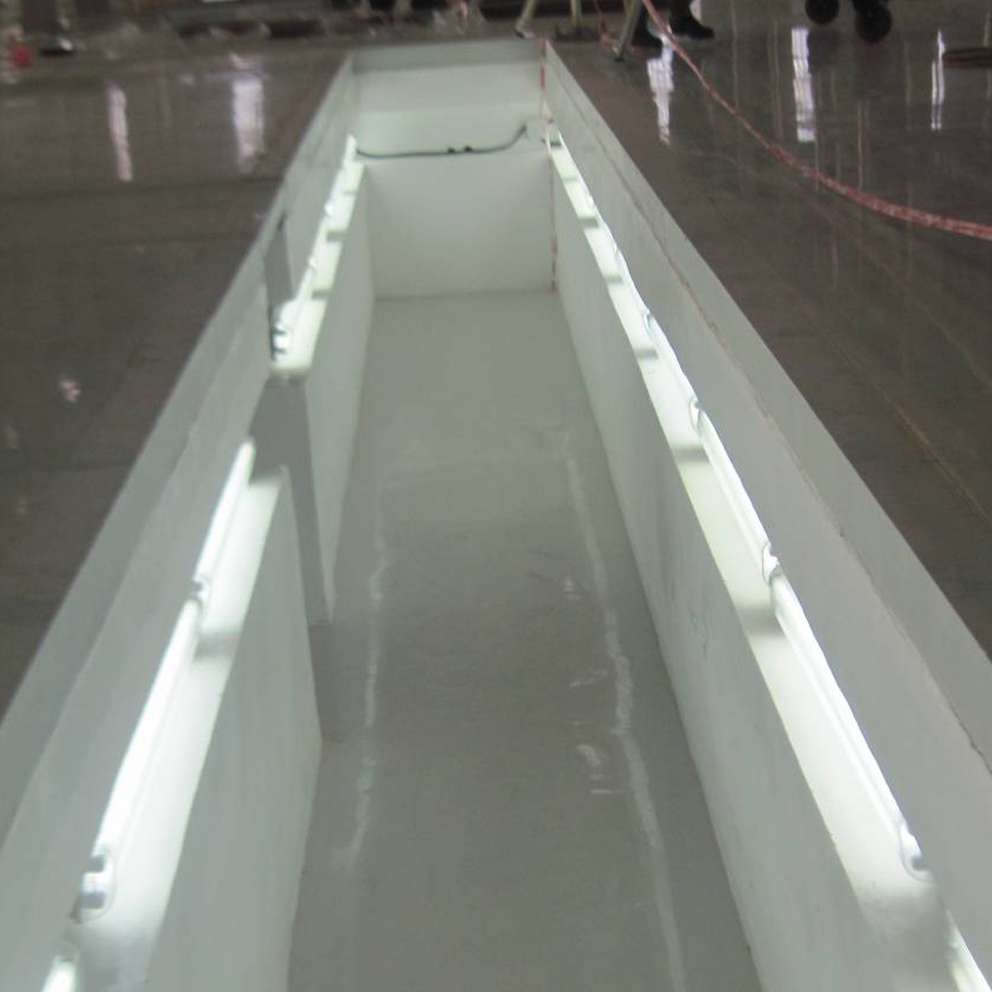

Understanding the unique requirements of various industries, particularly the automotive sector, we provide effective lighting solutions as part of our structures. Our air supply systems are strategically installed at multiple locations, with air pressure managed by FRL (Filter, Regulator, Lubricator) units to ensure optimal performance.

With Sparkline’s Line Side Utilities, clients can expect tailored solutions that boost productivity and streamline manufacturing operations. Choose Sparkline for reliable, efficient, and comprehensive utility solutions designed to meet your specific industrial needs.

Storage Fencing

  • Length: As per layout
  • Height: 2.5 Mtr.
  • Modular wire mesh frame
  • Material: MS with yellow color paint on railing & black color paint on columns

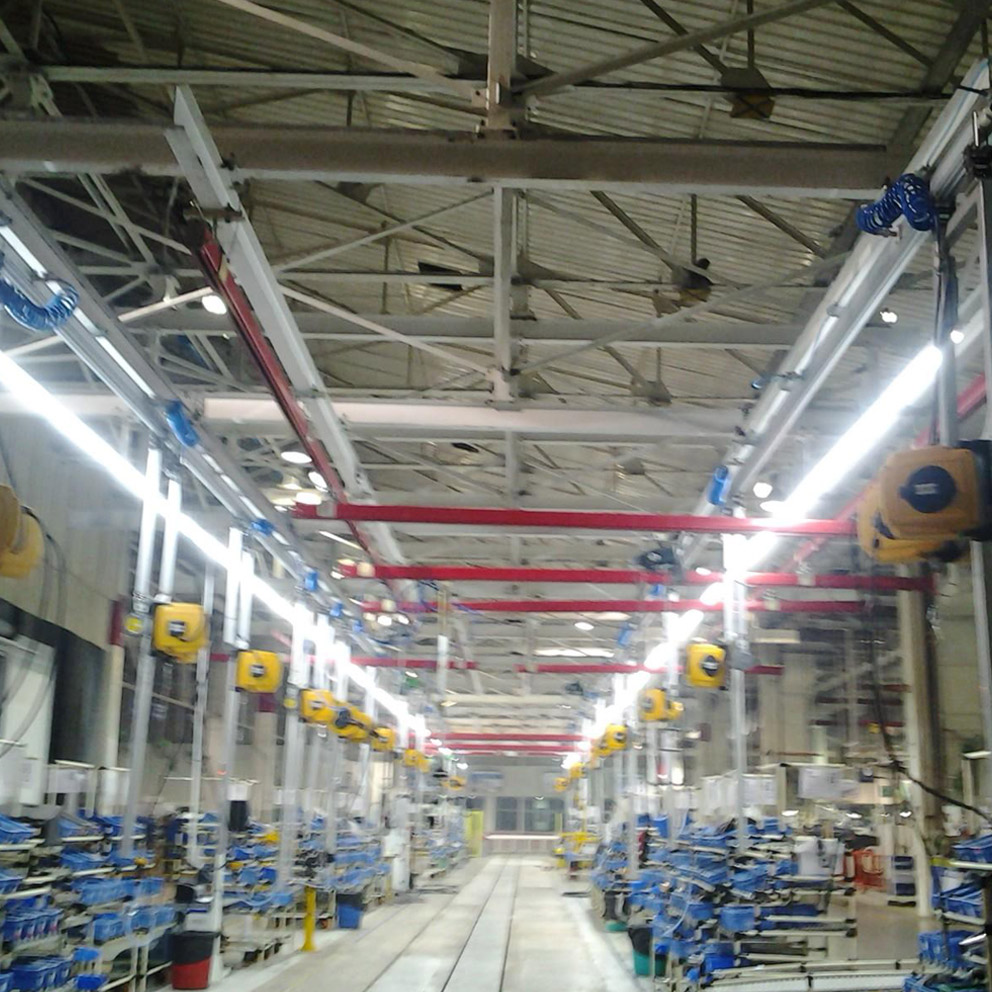

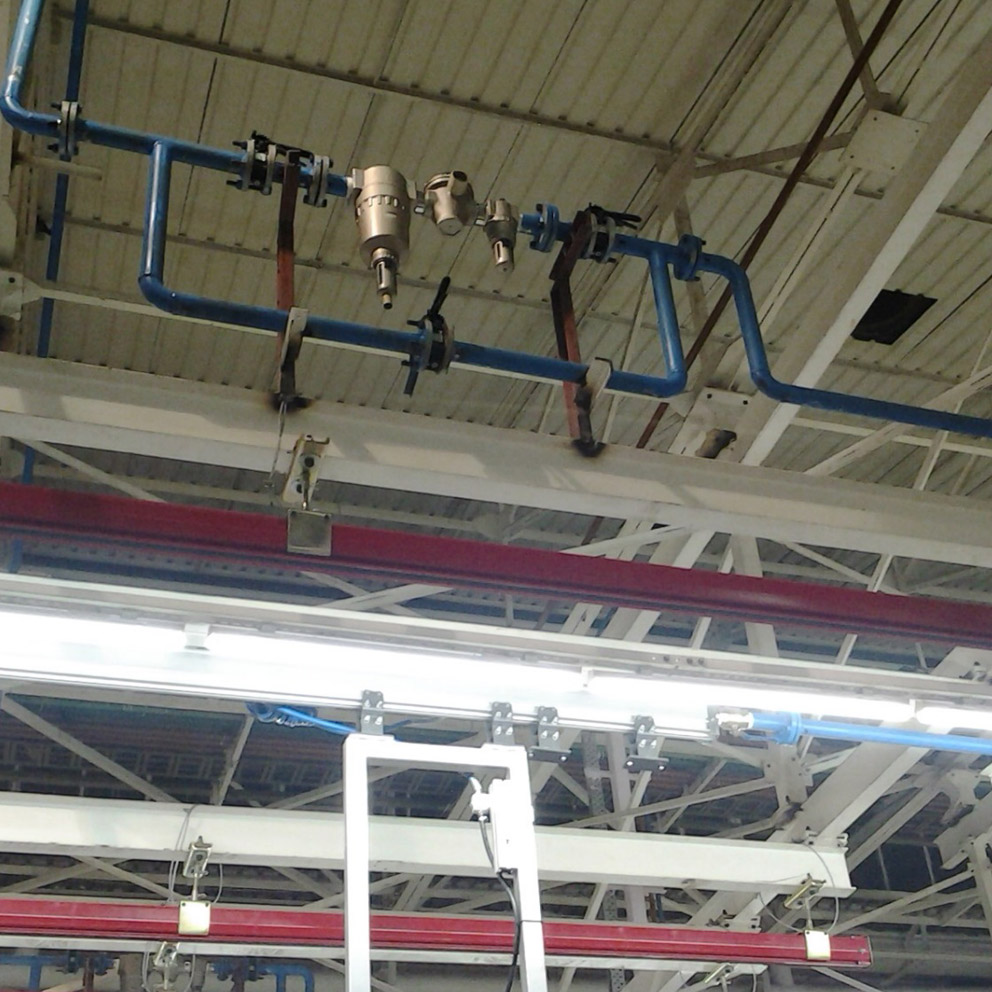

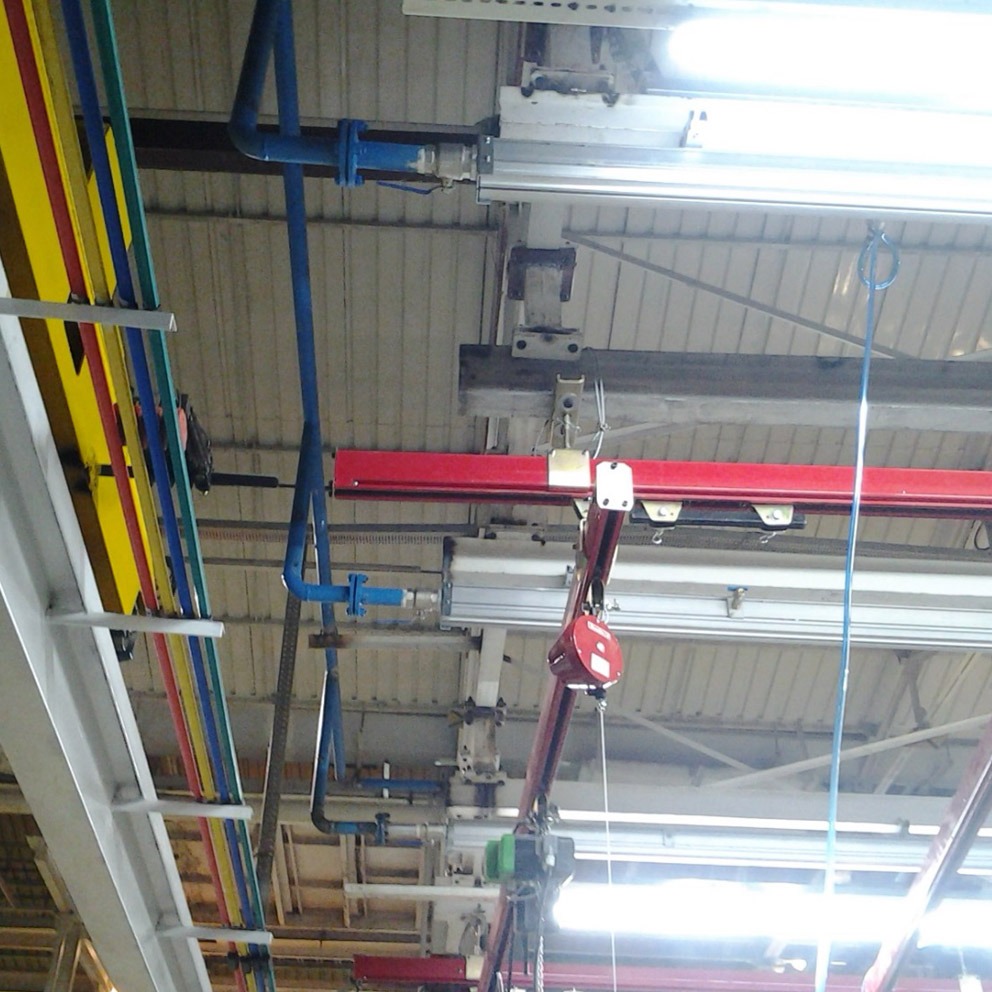

Secondary Air Line along Work station (Overhead):

  • Tap off from 8.8 mtr length from Header Pipe
  • 2″ pipe line across entire length (1LH & 1RH side)
  • ½” tap off every 4 mtr across entire length (LH & RH side)

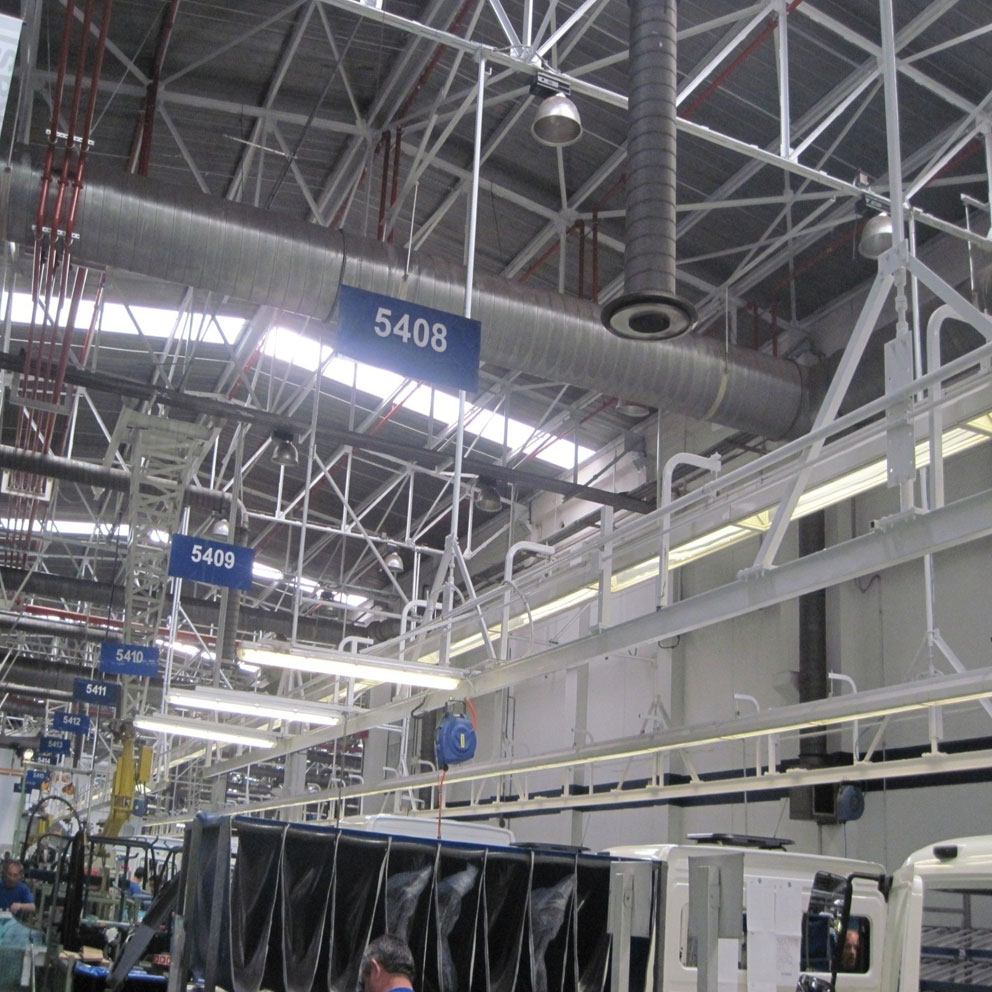

  • Tool Rails: Across entire length both on Lh & RH side made of I-Beam or H–Beam

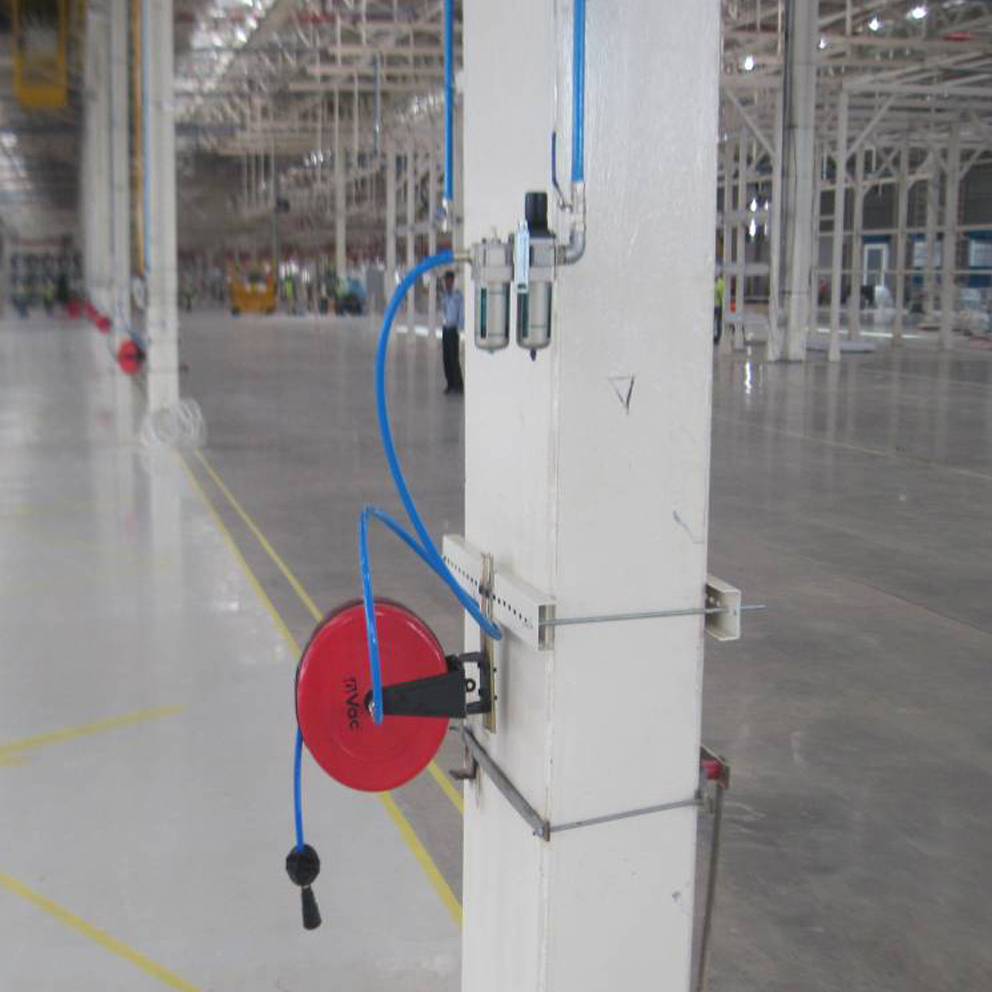

  • FRLS/Overhead Hose Reel/Spring Balancer /Coupler: Considered at every Tap off across entire length
  • Secondary Cable Tray: One Cable Tray with Cover across entire length
  • Electrical sockets: 2 sockets/station (1LH & 1RH side)

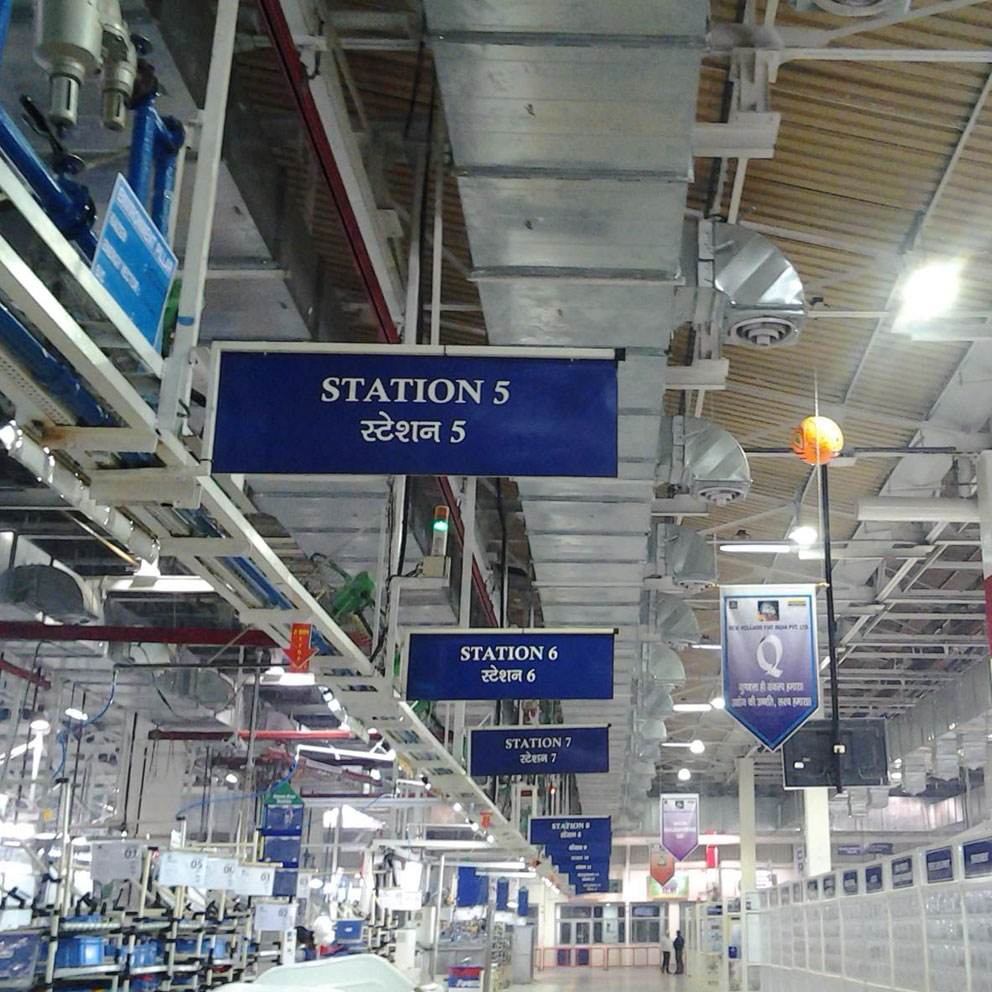

  • Station Boards (with mounting): 2 per station (1LH & 1RH side)
